Metallurgical pipe rod flaw detector
該設備為在線高速檢測設備，適用于鋼鐵行業的圓鋼、方坯、扁坯、矩形坯、鋼管管體等探傷，設備最大的特點是能滿足鋼鐵行業的高速在線探傷，設備必須與相關的輔機配合，根據工件表面的情況，需要對工件進行清洗、吹干等，成套設備有儲料臺架、步進機構、輸送輥道、清洗系統、噴淋系統、磁化系統、觀察機構、退磁機構、吹干裝置、輸出輥道、下料機構、修磨系統等組成，設備采用國內外先進的電子技術，采用模塊化國際電路，周向采用大型磁軛，縱向采用線圈，設備可分別周向磁化、縱向磁化和復合磁化，能自動完成工件步進、輥道輸送、清洗、吹干、噴淋、磁化、熒光觀察、退磁、下料、修磨等，工件兩頭無盲區，整機外型美觀、大方，可適用鋼廠鋼坯和所有鋼管管體探傷等工件探傷。

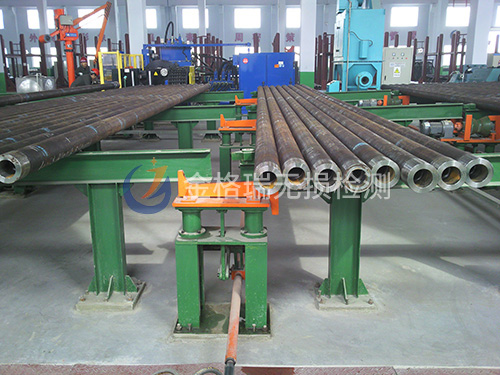

This equipment is an on-line high-speed inspection equipment, which is suitable for flaw detection of round steel, square billet, flat billet, rectangular billet, steel pipe body, etc. in the steel industry. The biggest characteristic of the equipment is that it can meet the high-speed on-line flaw detection in the steel industry. The equipment must be matched with relevant auxiliary machines. According to the surface conditions of the workpiece, the workpiece needs to be cleaned, dried, etc. The complete set of equipment consists of a material storage rack, a stepping mechanism, a conveying roller table, a cleaning system, a spraying system, a magnetization system, an observation mechanism, a demagnetization mechanism, a drying device, an output roller table, a blanking mechanism, a grinding system and the like. The equipment adopts advanced electronic technologies at home and abroad, adopts modular international circuits, adopts large yokes in the circumferential direction and coils in the longitudinal direction, and can be magnetized in the circumferential direction, the longitudinal direction and the composite magnetization respectively. It can automatically complete workpiece stepping, roller conveying, cleaning, blow drying, spraying, magnetization, fluorescence observation, demagnetization, blanking, grinding, etc. The two ends of the workpiece have no blind area, the overall appearance is beautiful and elegant, and it is applicable to flaw detection of steel billets and all steel pipe bodies in steel mills.
